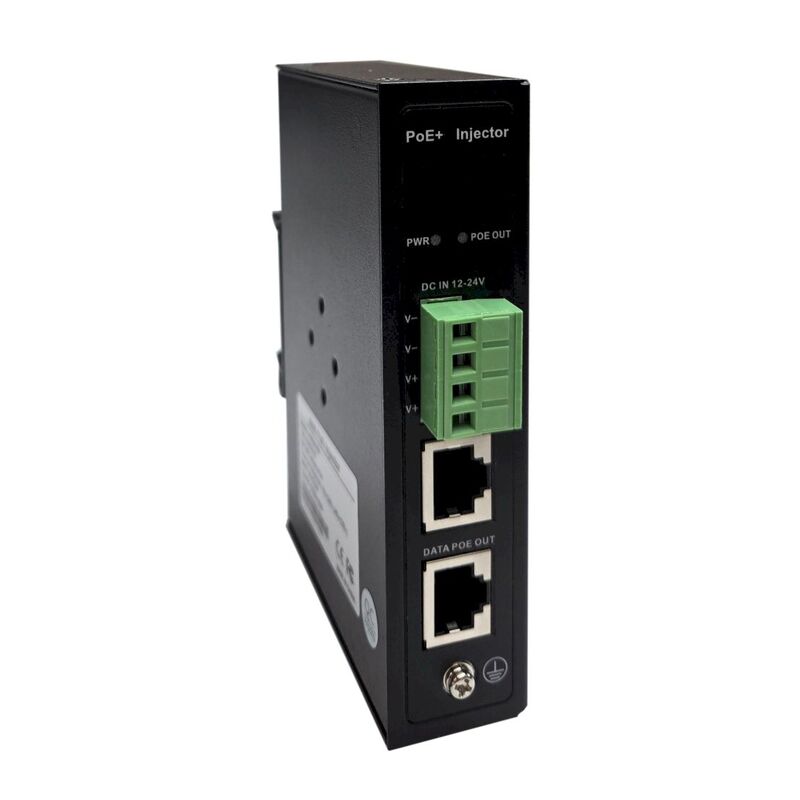

Tycon Power Systems TP-DC-12AT30-10G DCDC 10G PoE+ Injector, 12-24VDC IN, 54V 30W 802.3at PoE OUT, DIN/Wall Mount
Tycon TP-DC-12AT30-10G DCDC 10G PoE+ injector with 11-29VDC input, 54V 30W 802.3af/at Class 4 PoE+ output and DIN/wall mounting.
Tycon Power
Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.
Share this product:
Tycon TP-DC-12AT30-10G DCDC 10G PoE+ Injector
The TP-DC-12AT30-10G is a rugged DC-to-DC PoE+ injector for battery-powered and remote network systems. It accepts low-voltage DC input and provides a 54V 30W 802.3af/at Class 4 PoE+ output while supporting Ethernet speeds up to 10G.
Key features
- 11-29VDC input via removable wire terminal, accepting up to 12AWG cable
- 54VDC 30W 802.3af/at Class 4 PoE+ output
- 10/100/1000Mb, 2.5G, 5G and 10G Ethernet compatible
- Shielded RJ45 Data IN and PoE OUT ports
- DIN rail or wall mounting with brackets included
- Metal housing with wide -20°C to +60°C operating temperature range
Protection and reliability
- Over-current, overload and over-voltage protection
- Low Voltage Detect (LVD) for battery-powered installations
- Anti-interference protection for demanding environments
- Power and PoE output status LEDs
- Minimum 80% efficiency
- 2 year warranty
Typical applications
- Solar and battery network systems
- Vehicle and marine installations
- Wireless backhaul and access equipment
- Security and surveillance systems
Technical specifications
- Input: 11-29VDC @ 3A
- Input connector: Removable wire terminal, up to 12AWG
- PoE output: 54VDC 30W, 802.3af/at Class 4 PoE+
- PoE pinout: pins 1,2 V+ and 3,6 V-
- Ethernet: 10/100/1000Mb/2.5G/5G/10G
- Output connectors: shielded RJ45 Data IN and PoE OUT
- Operating temperature: -20°C to +60°C
- Storage temperature: -40°C to +70°C
- Humidity: 5% to 80% RH, non-condensing
- Dimensions: 119 x 85.5 x 28mm
- Weight: 380g
- Standards: FCC Class B, EN55032 Class B, EN 61000-3-2, EN 62368-1
