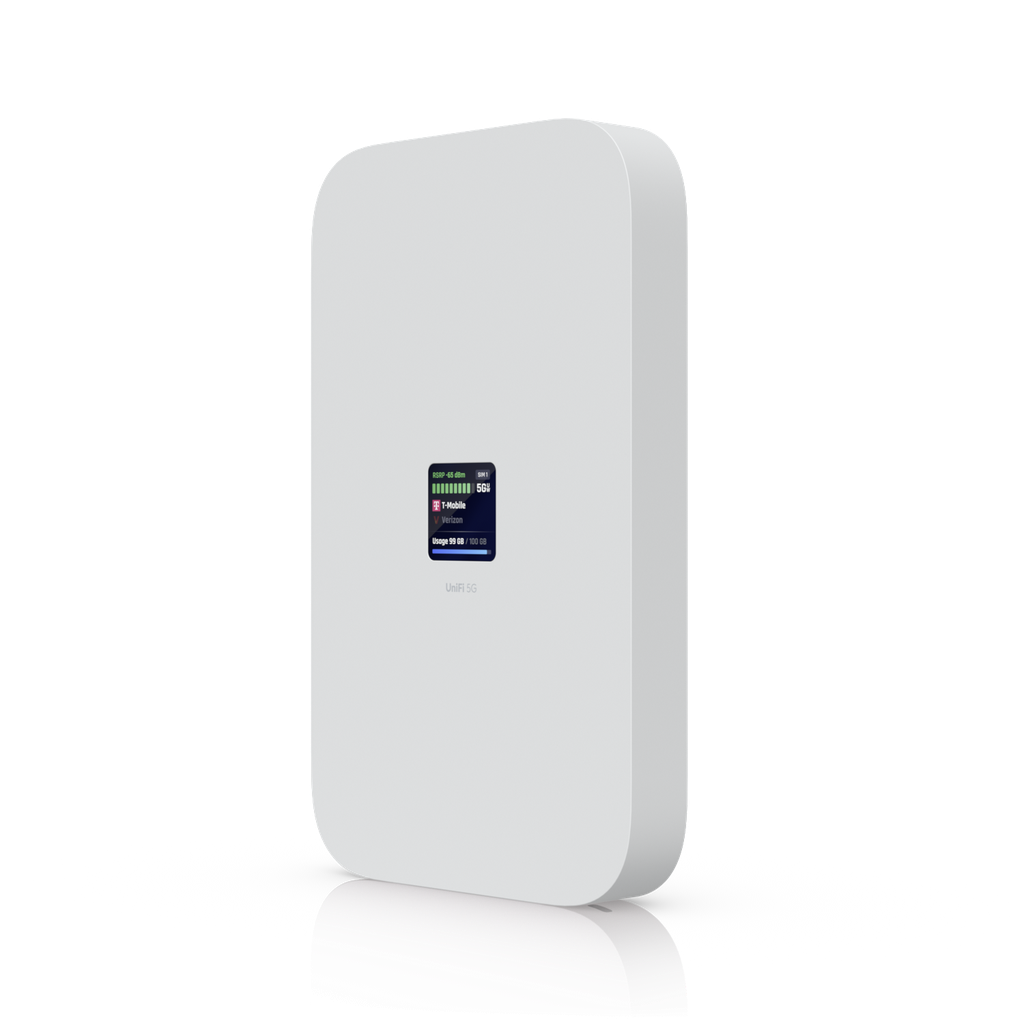

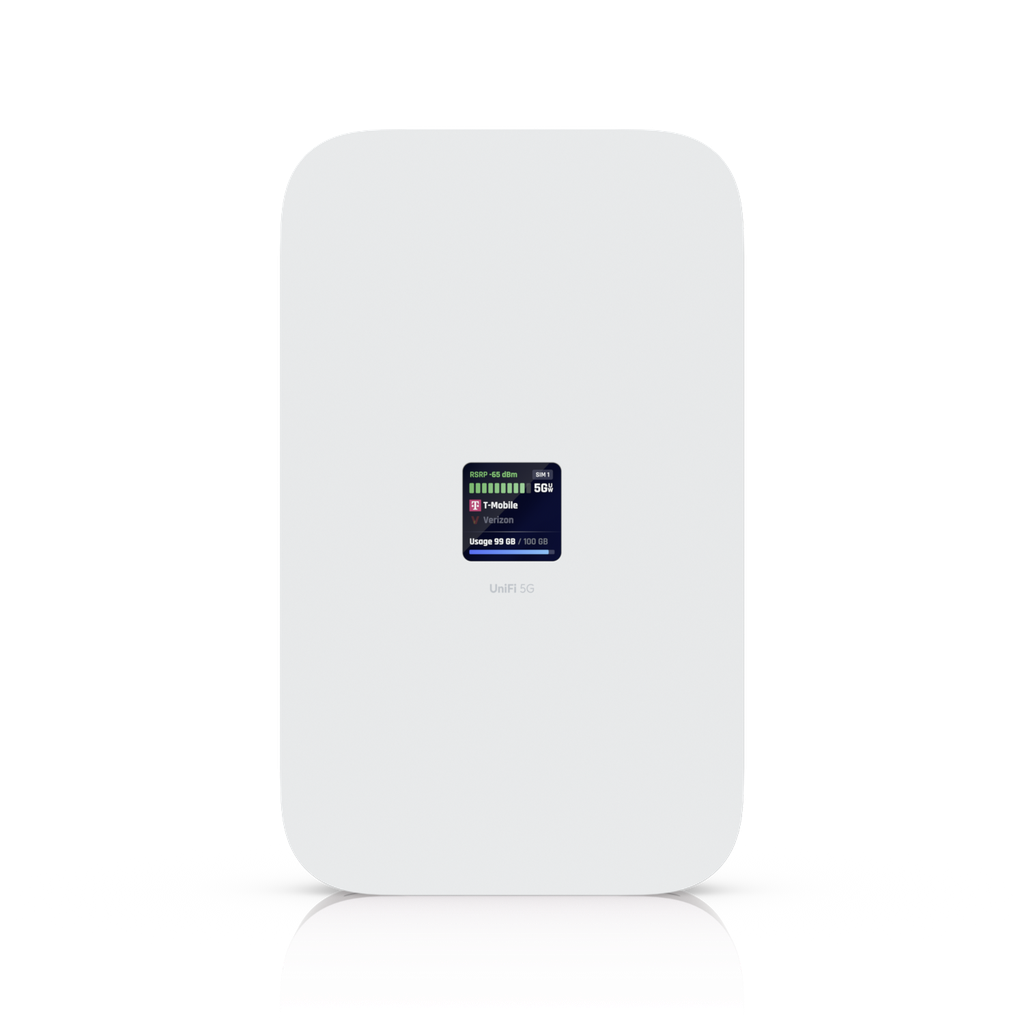

Ubiquiti U5G-Max 5G 3.4Gbps Modem UniFi PoE Powered Dual SIM/eSIM
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti U5G-Max 5G 3.4Gbps Modem UniFi PoE Powered Dual SIM/eSIM
Ubiquiti Unifi U5G-Max high-performance 5G (3.4 Gbps) modem for any Unifi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.
Technical Specifications
Overview
Dimensions
180 x 109 x 33.8 mm
(7.1 x 4.3 x 1.3")
Networking Interface
(1) 2.5 GbE RJ45 port
5G NR and LTE radio
SIM
(1) Nano SIM
(1) Nano-SIM or eSIM
PoE Interface
(1) PoE input
Mounting
Desktop stand, wall, window mount (Included)
Tamper Resistance
IK04
Mechanical
Weight
Device: 410 g (14.5 oz)
Stand: 215 g (7.6 oz)
Wall mount: 7.6 g (0.3 oz)
Window mount: 20 g (0.7 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, silicone rubber
Hardware
Management
Ethernet
5G NR
Category
5G NR
Frequency Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Max. TX Power
HPUE power class 2: 26 dBm
4G LTE
Frequency Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power
HPUE power class 2: 25 dBm
3G UMTS
Frequency Bands
B1, B2, B4, B5, B8, B19
Peak Data Speed
5G NSA
Downlink 3.4 Gbps
Uplink 560 Mbps
5G SA
Downlink 1.8 Gbps
Uplink 650 Mbps
4G LTE
Downlink 1.6 Gbps
Uplink 210 Mbps
Antennas
Type
(4) Embedded cellular antennas
Max. Power Consumption
14.5W
Power Method
PoE
Display
1.3" touchscreen
Buttons
(1) Factory-reset
Ambient Operating Temperature
0 to 40 °C (32 to 104 °F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, PTCRB, GCF
Software
Application Requirements
UniFi Network
