  3. Ubiquiti U7-Mesh UniFi WiFi7 Indoor Enterprise Mesh Access Point - POE injector included

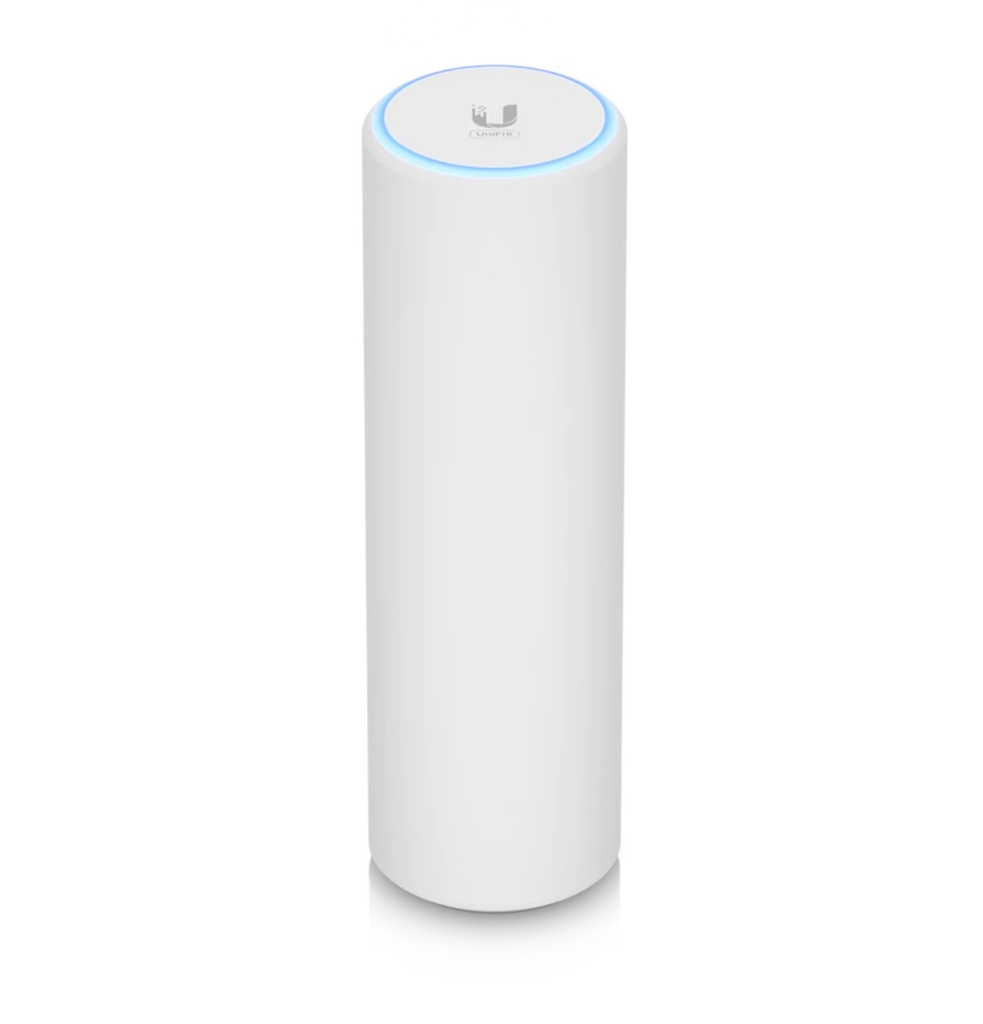

Ubiquiti U7-Mesh UniFi WiFi7 Indoor Enterprise Mesh Access Point - POE injector included

https://citytechnology.com.au/web/image/product.template/22956/image_1920?unique=78b64e5

Product Code: U7-Mesh

$ 380.05 incl. GST 380.05 AUD $ 380.05

$ 329.00

    This combination does not exist.

    Add to Cart Buy Now
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Share this product:

    Ubiquiti U7-Mesh UniFi WiFi 7 Indoor/Outdoor Mesh Access Point

    Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system. POE Injector included

    U7-Mesh UniFi Features:

    • Technical Specifications
      Overview
      Dimensions
      ⌀48.5 x 159.5 mm (⌀1.9 x 6.3")
      WiFi Standard
      WiFi 7
      Spatial Streams
      4
      Coverage Area
      140 m² (1,500 ft²)
      Max. Client Count
      200+
      Uplink
      2.5 GbE
      Mounting
      Wall, Pole, Table stand (Mounts included)
      Weatherproofing
      IPX6 (Installed with the outdoor mount)
      Power Method
      PoE
      Performance
      MIMO
      5 GHz
      2 x 2 (DL/UL MU-MIMO)
      2.4 GHz
      2 x 2 (DL/UL MU-MIMO)
      Max. Data Rate
      5 GHz
      4.3 Gbps (BW240)
      2.4 GHz
      688 Mbps (BW40)
      Antenna Gain
      5 GHz
      Omnidirectional: 6 dBi Directional: 10 dBi
      2.4 GHz
      3 dBi
      Max. TX Power
      5 GHz
      24 dBm
      2.4 GHz
      23 dBm
      Max. BSSIDs
      8 per Radio
      Supported Data Rates
      802.11be (WiFi 7)
      7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
      802.11ax (WiFi 6)
      7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
      802.11ac (WiFi 5)
      6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
      802.11n
      6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
      Features
      Wireless Meshing
      Yes
      Band Steering
      Yes
      802.11v BSS Transition Management
      Yes
      802.11r Fast Roaming
      Yes
      802.11k Radio Resource Management (RRM)
      Yes
      Advanced Radio Management
      Yes
      Passpoint (Hotspot 2.0)
      Yes
      Captive Hotspot Portal
      Custom Branding Landing Page
      Yes
      Voucher Authentication
      Yes
      Payment-Based Authentication
      Yes
      External Portal Server Support
      Yes
      Password Authentication
      Yes
      Guest Network Isolation
      Yes
      Private Pre-Shared Key (PPSK)
      Yes
      WiFi Speed Limiting
      Yes
      Client Device Isolation
      Yes
      WiFi Schedules
      Yes
      RADIUS over TLS (RadSec)
      Yes
      Dynamic RADIUS-assigned VLAN
      Yes
      Hardware
      Max. Power Consumption
      13W
      Includes PoE Adapter
      Yes
      Supported Voltage Range
      42.5–57V DC
      Networking Interface
      (1) 2.5 GbE RJ45 port
      Weight
      313 g (11 oz)
      Management
      Ethernet
      Enclosure Material
      UV-stabilized polycarbonate
      Mount Material
      UV-stabilized polycarbonate
      LEDs
      System
      W/B
      Channel Bandwidth
      HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
      NDAA Compliant
      Yes
      Certifications
      CE, FCC, IC
      Ambient Operating Temperature
      -30 to 60° C (-22 to 140° F)
      Ambient Operating Humidity
      5 to 95% noncondensing
