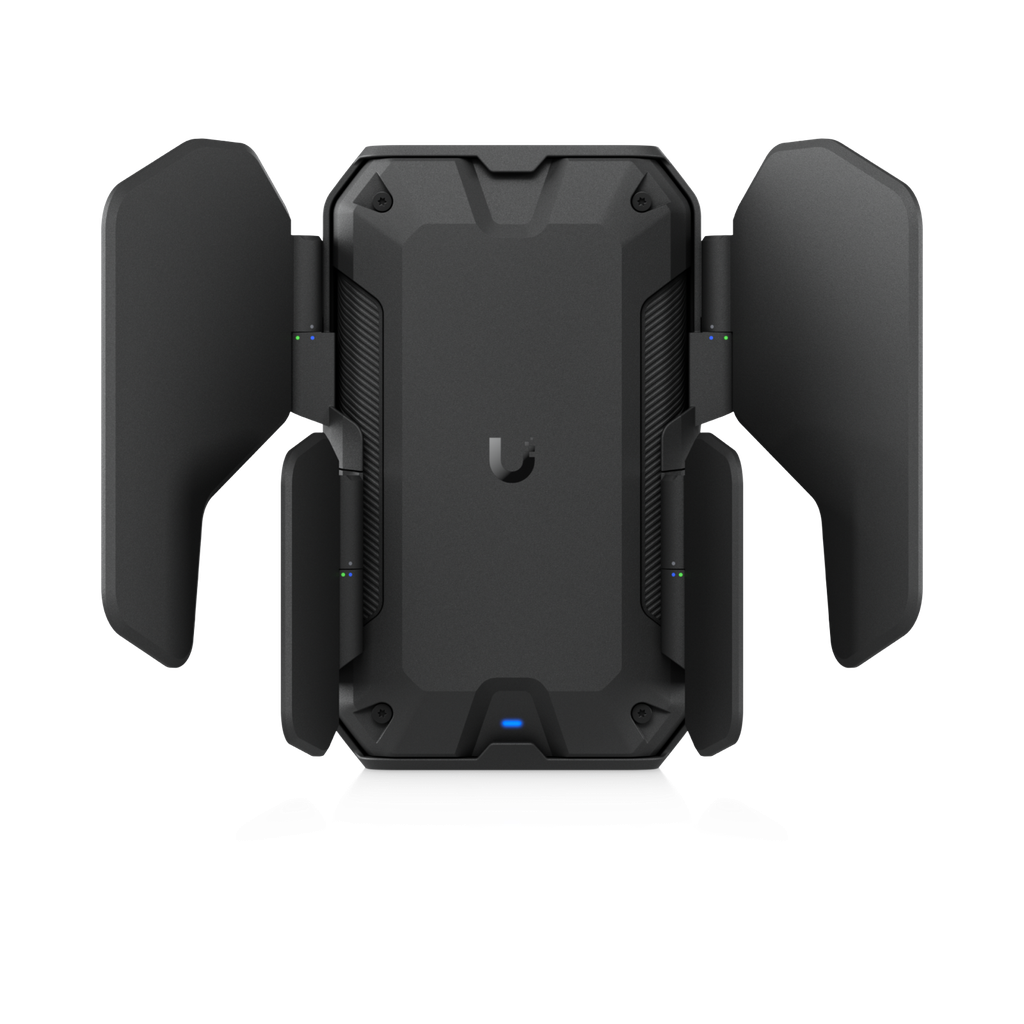

Ubiquiti U7-Industrial UniFi Industrial WiFi 7 Access Point
U7-Industrial IP67 UniFi WiFi 7 access point with 2.5 GbE uplink, adjustable directional RF and −40 to 70 °C operation.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti U7-Industrial UniFi Industrial WiFi 7 Access Point
The U7-Industrial is a rugged dual-band WiFi 7 access point for industrial and outdoor network installations. Its IP67 enclosure, extended operating temperature range and integrated high-gain directional RF system combine with adjustable reflectors and a 2.5 GbE uplink to support flexible coverage planning.
Key features
- WiFi 7 on 2.4 GHz and 5 GHz, with four spatial streams and 2 × 2 MU-MIMO per band.
- One 2.5 GbE RJ45 uplink with PoE power; maximum power consumption 13 W.
- IP67 protection when the cable gland is properly installed.
- Operating temperature from −40 to 70 °C.

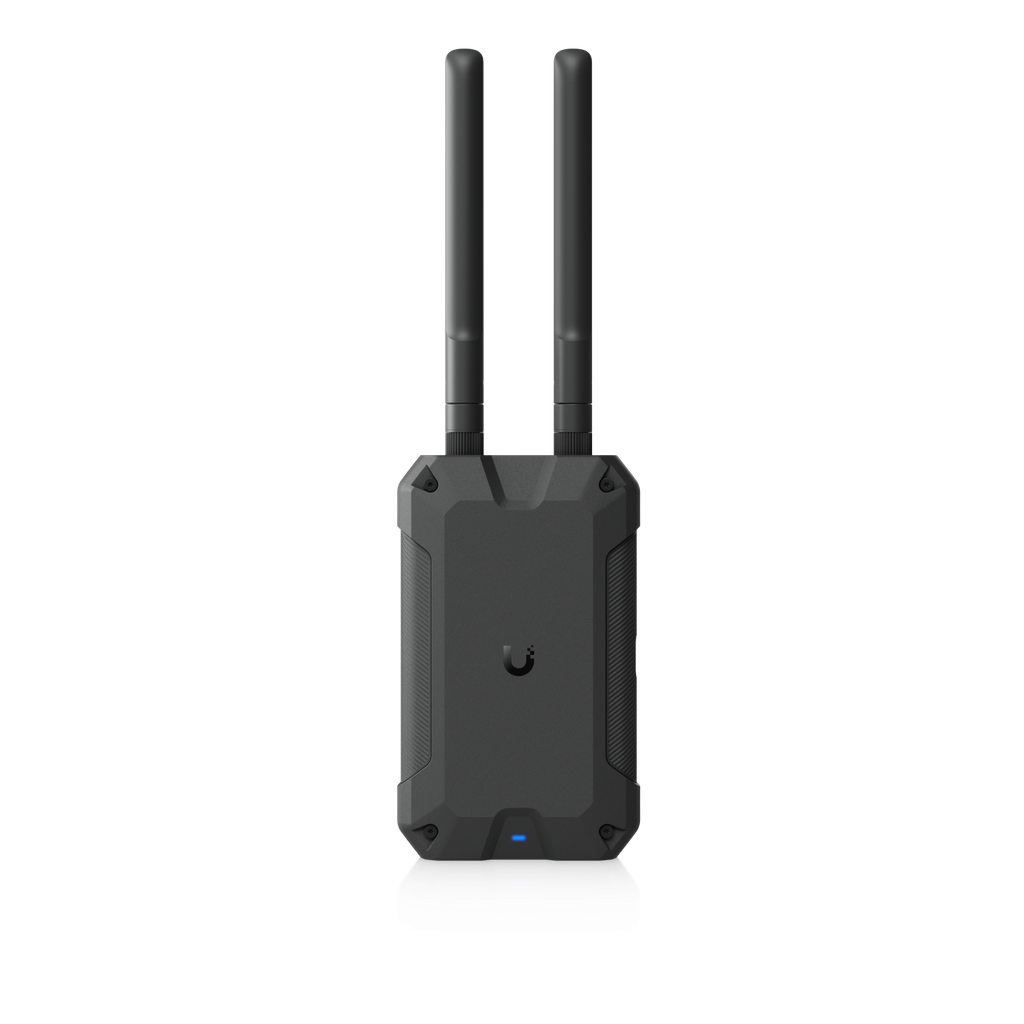

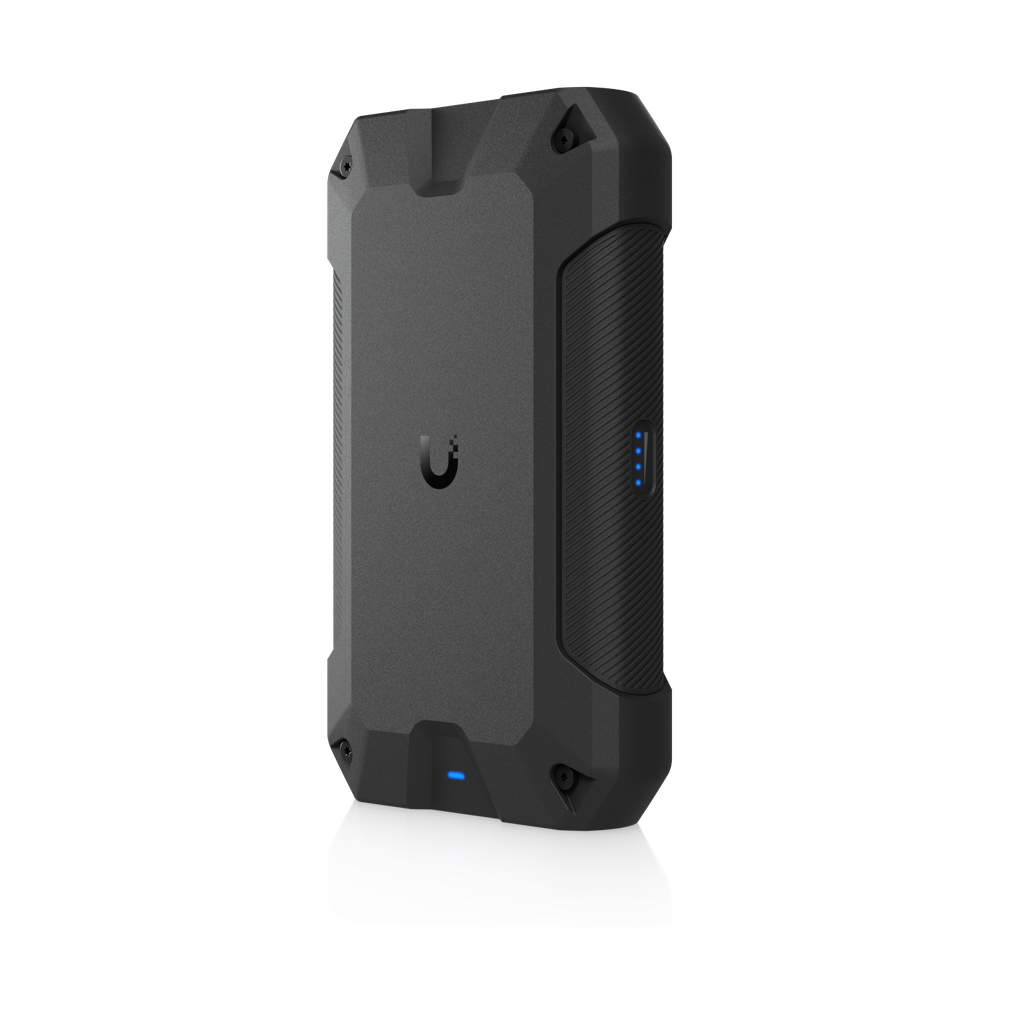

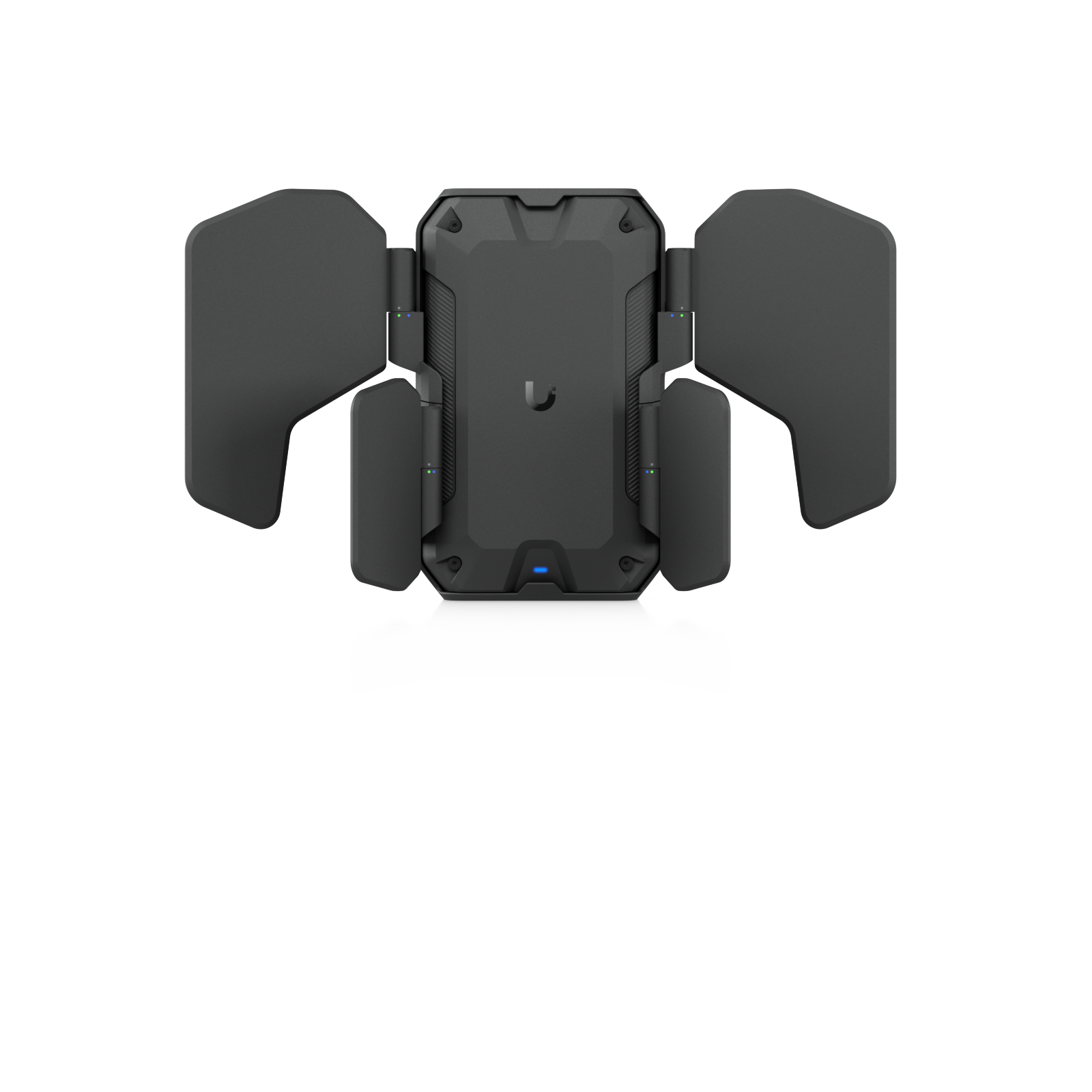

- Integrated directional antennas with reflector-controlled isolation and beamwidth; an external omnidirectional antenna option is also included.
- Rated coverage area of 465 m² and support for 200+ clients; actual coverage depends on installation and RF conditions.
- Wireless meshing, fast roaming, VLAN and RADIUS features for UniFi-managed networks.
Ideal applications
- Industrial facilities and plant networks requiring rugged wireless access.

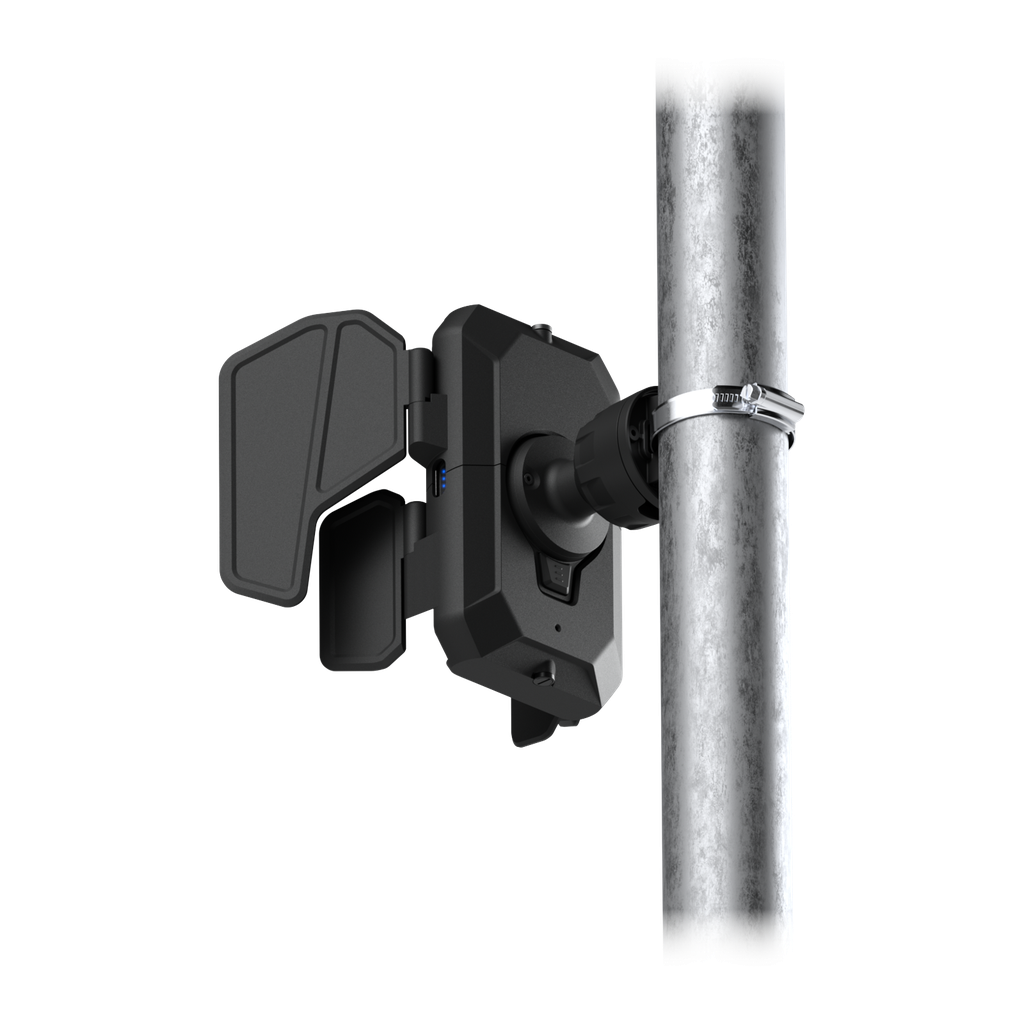

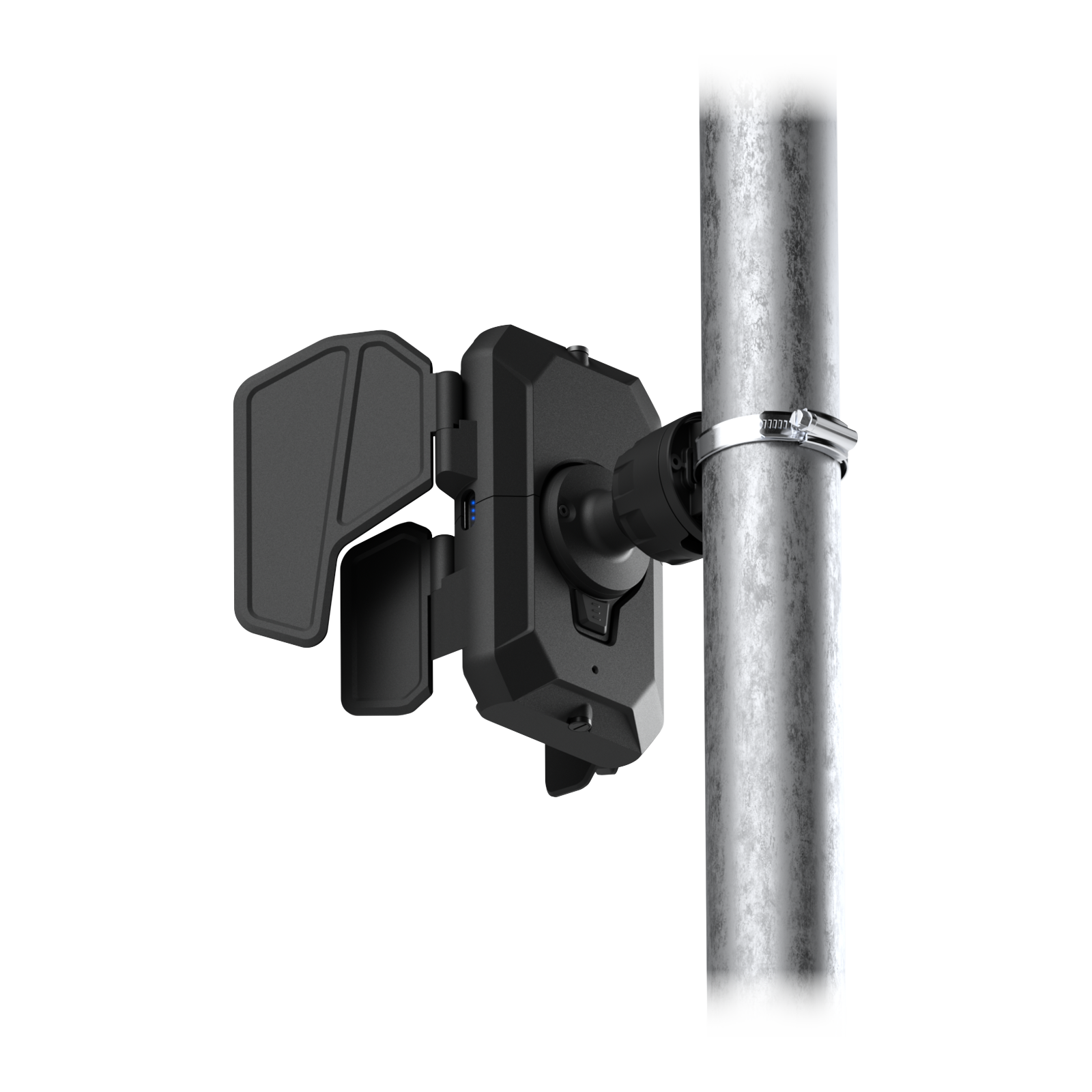

- Outdoor yards and pole-mounted installations with targeted WiFi coverage.
- Sites requiring adjustable directional coverage or an omnidirectional configuration.
Deployment requirements
Requires UniFi Network 11 RC and Access Point firmware 8.8.12. Confirm compatible software availability before deployment. Maximum 5 GHz data rate and 240 MHz channel operation depend on the regulatory region; configure the correct country settings. The IP67 rating requires correct cable-gland installation.
Technical specifications
Overview
- Dimensions: Device: 170 × 103 × 41.2 mm
Ball mount installed: 170 × 103 × 107.6 mm
Adjustable reflectors installed: 177.6 x 299.7 × 177.8 mm
Omnidirectional antennas installed: 341.8 × 103 × 107.6 mm (Dimensions with antennas include the ball mount) - WiFi Standard: WiFi 7
- Spatial Streams: 4
- Coverage Area: 465 m²
- Max. Client Count: 200+
- Uplink: 2.5 GbE
- Mounting: Wall, Pole (Mounts included)
- Weatherproofing: IP67 (With cable gland properly installed)
- Power Method: PoE
Performance
- MIMO — 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- MIMO — 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate — 5 GHz: 4.3 Gbps (BW240) (Depends on regulatory region)
- Max. Data Rate — 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain — 5 GHz: Directional internal (Built-in): 10 dBi, 95° x 45°
Directional internal (Reflector Wide Angle): 11 dBi, 70° x 45°
Directional internal (Reflector Narrow Angle): 12 dBi, 55° x 45°
External omni: 6 dBi, 360° x 45° - Antenna Gain — 2.4 GHz: Directional internal (Built-in): 8 dBi, 100° x 45°
Directional internal (Reflector Wide Angle): 9 dBi, 80° x 45°
Directional internal (Reflector Narrow Angle): 10 dBi, 65° x 45°
External omni: 5 dBi, 360° x 45° - Max. TX Power — 5 GHz: 24 dBm
- Max. TX Power — 2.4 GHz: 23 dBm
Features
- Wireless Meshing: Supported
- Band Steering: Supported
- 802.11v BSS Transition Management: Supported
- 802.11r Fast Roaming: Supported
- 802.11k Radio Resource Management (RRM): Supported
- Advanced Radio Management: Supported
- Real-Time Spectral Analysis: Supported (For enhanced channel selection)
- Passpoint (Hotspot 2.0): Supported
- Captive Hotspot Portal — Custom Branding Landing Page: Supported
- Captive Hotspot Portal — Voucher Authentication: Supported
- Captive Hotspot Portal — Payment-Based Authentication: Supported
- Captive Hotspot Portal — External Portal Server Support: Supported
- Captive Hotspot Portal — Password Authentication: Supported
- Captive Hotspot Portal — Guest Network Isolation: Supported
- Private Pre-Shared Key (PPSK): Supported
- WiFi Speed Limiting: Supported
- Client Device Isolation: Supported
- WiFi Schedules: Supported
- RADIUS over TLS (RadSec): Supported
- Dynamic RADIUS-assigned VLAN: Supported
Hardware
- Max. Power Consumption: 13W
- Supported Voltage Range: 42.5–57V DC
- Networking Interface: (1) 2.5 GbE RJ45 port
- Weight: Device: 577 g
Ball mount: 163 g
Reflector antenna set: 500 g
Omni antenna set: 52 g - Wind Loading: 97.3 N at 200 km/h
- Pole Mount Diameter: 25–63.5 mm
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
- Mount Material: Aluminum alloy
- LEDs — System: (4) Blue: signal
(1) White/Blue: indicator - Ambient Operating Temperature: -40 to 70° C
- Ambient Operating Humidity: 5 to 95% noncondensing
- NDAA Compliant: Supported
- Certifications: CE, FCC, IC
Included components
Access point, adjustable reflector set, omnidirectional antenna set, ball mount, wall/pole mounting hardware and cable-gland components.
Why choose U7-Industrial?
U7-Industrial combines rugged construction and wide-temperature operation with selectable antenna coverage and a multi-gigabit uplink, bringing UniFi-managed WiFi 7 connectivity to demanding installations.
