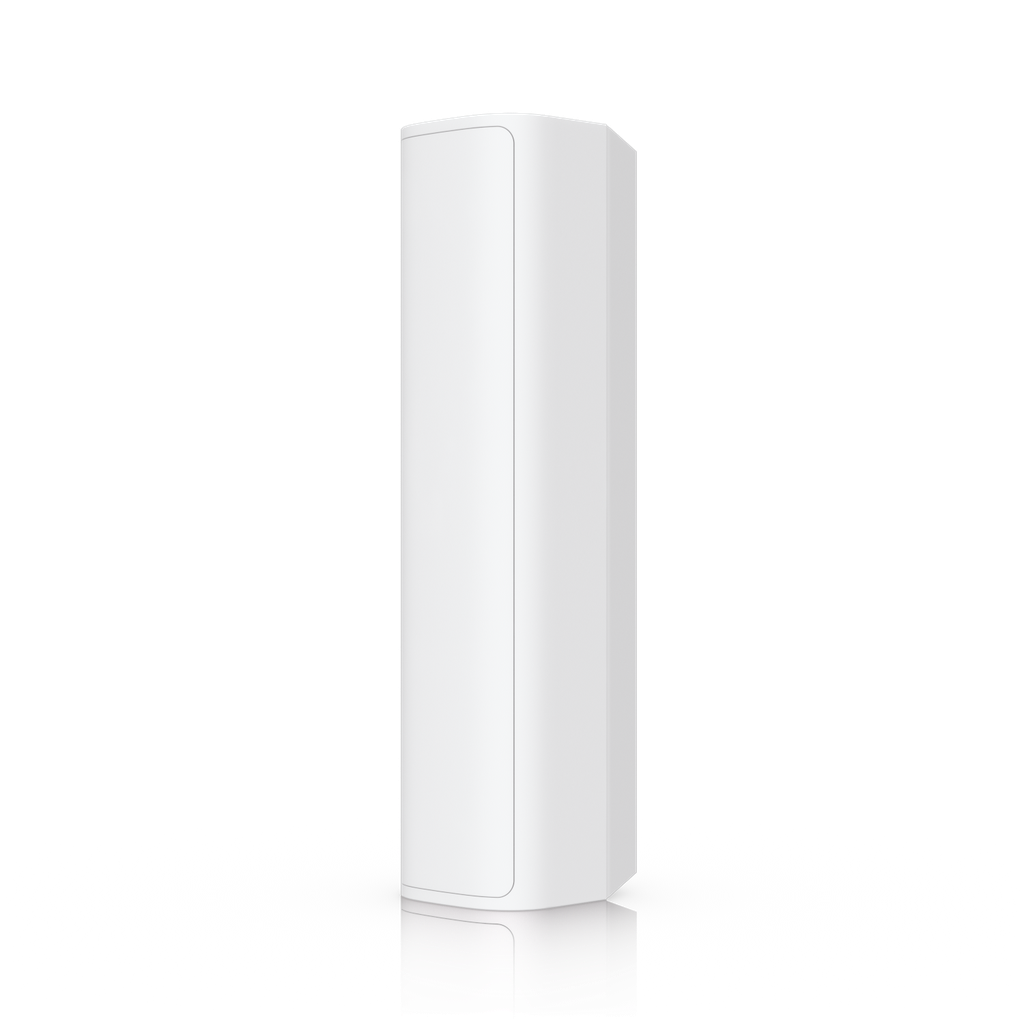

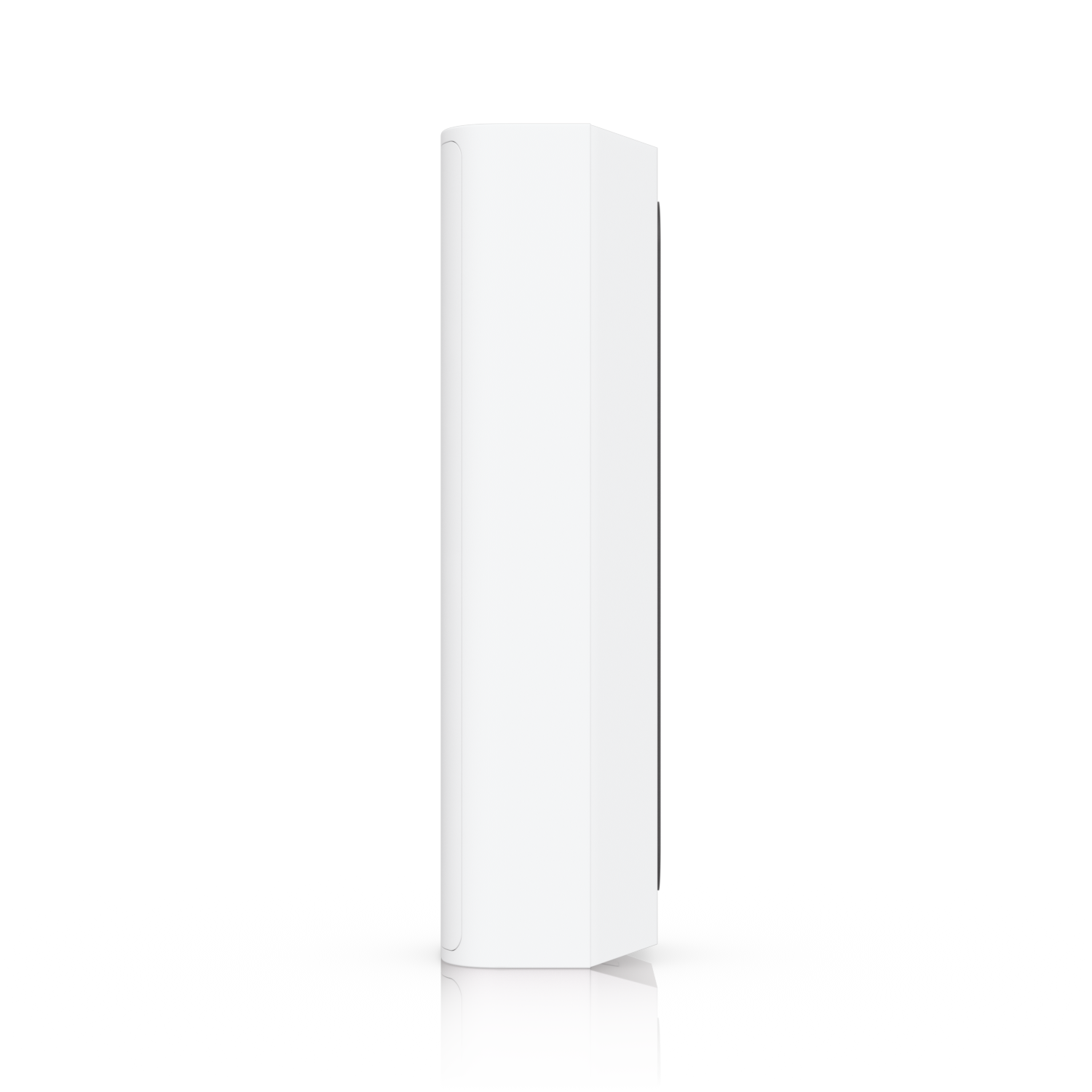

Ubiquiti USL-Motion-US UniFi SuperLink Motion Sensor
The USL-Motion-US is a battery-powered UniFi Protect SuperLink motion sensor for versatile indoor motion detection with horizontal and vertical PIR sensing, long-range SuperLink connectivity and long battery life.
Key features
- Horizontal PIR detection up to 1.5 m.
- Vertical PIR detection up to 6 m with pet immunity.
- SuperLink connectivity with up to 2 km range.
- CR123A battery power with up to 6-year battery life.

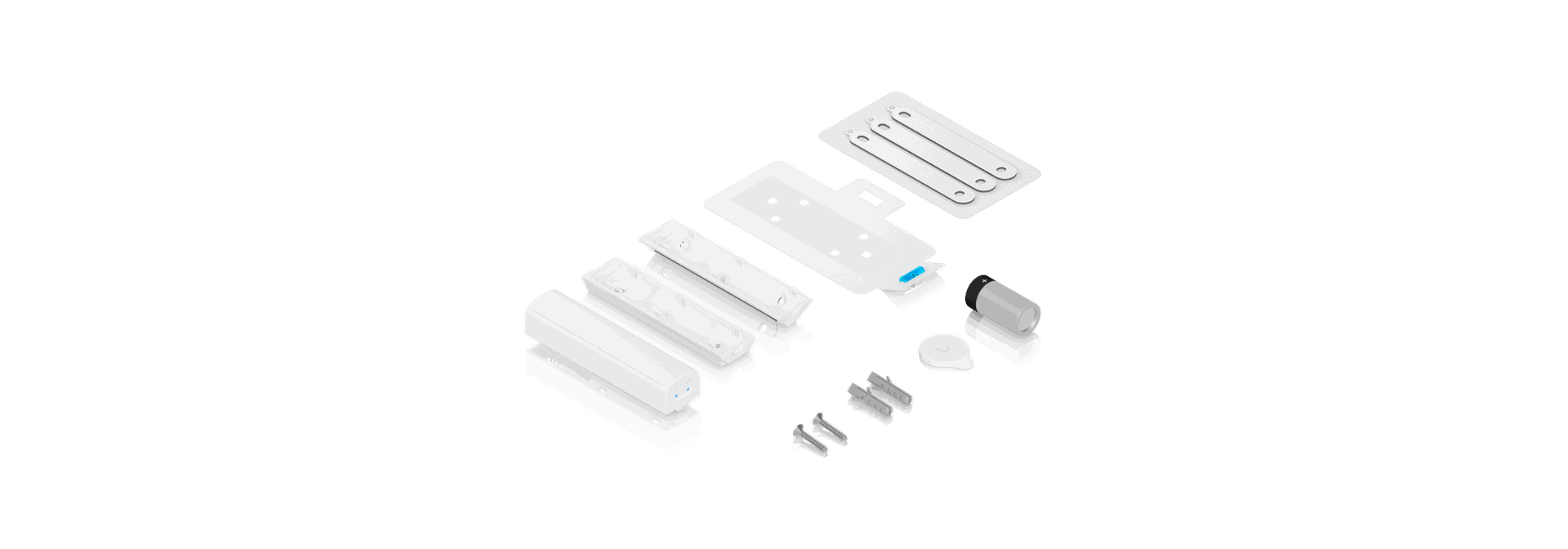

- Adhesive and screw mount options with wall or corner mounting.
Ideal applications
- Motion detection for rooms, corridors and protected indoor areas.
- UniFi Protect alarm workflows where pet-aware vertical sensing is useful.
- Long-range battery-powered motion sensing where wiring is impractical.
Technical specifications
- Dimensions: With wall mount: 93.5 x 22.5 x 24.7 mm; with corner mount: 93.5 x 22.5 x 27.9 mm.
- Weight: 45 g.
- Networking/connectivity: Proprietary SuperLink connectivity at 915.6–927.6 MHz for US operation.
- Power: 3V lithium CR123A battery, 22.6 mW maximum consumption, up to 6-year battery life.
- Performance/capacity: Horizontal PIR range up to 1.5 m; vertical PIR range up to 6 m with pet immunity; up to 2 km SuperLink range.
- Environment: 0 to 40°C operating temperature; 10 to 90% noncondensing humidity.
- Compatibility: UniFi Protect web and UniFi Protect iOS/Android apps; SuperLink Gateway required.
- Certifications: FCC, IC, CE; NDAA compliant.
Why choose USL-Motion-US?
USL-Motion-US brings long-range, battery-powered motion awareness into UniFi Protect without needing network or alarm cabling at the sensor location.
